| 产品特性：混频器 | 是否进口：是 | 原产国/地区：美国 |
| 加工定制：否 | 品牌：Mi-Wave | 型号：95***F-30-18-599 |
| 测量范围：26.5GHz – 40GHz | 产品用途：微波射频信号处理 |

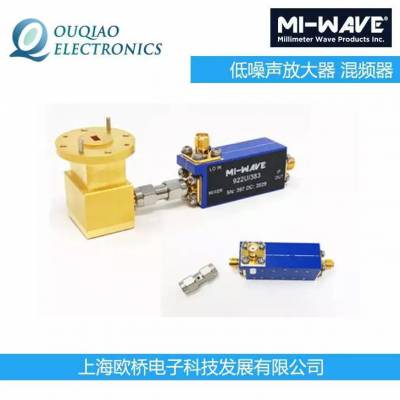

Mi-Wave混频器 低噪声放大器95***F-30-18-599
品牌：Mi-Wave
型号：95***F-30-18-599
Mi-Wave的955系列微波和毫米波低噪声放大器提供各种频率范围，带宽，增益和功率输出。为满足通信需求而进行的低成本生产设计现已推出。955系列微波和毫米波功率放大器提供广泛的频率范围，带宽，增益和功率输出。
型号选择：
955-01/60/30/1.85mmF 1 GHz to 60 GHz, Noise Figure 5 dB, P1dB +10 dBm typ
95***F-30-18-599 26.5GHz – 40GHz, Small Signal Gain (dB) 30 dBv and Output Power @ Psat (dBm) 18 dBm
955E-77-30-387 72 GHz – 82 GHz – Small Signal Gain 30dB, Noise Figure 4dB,
955EF-20-12-387 60GHz – 90GHz,Noise Figure of 5dB, Small Signal Gain 20dB
955EF-30-387 60GHz – 90GHz, Small Signal Gain of 30dB, Noise Figure 4.5dB
955U-50-66-22-15-383 50GHz – 66GHz, Small Signal Gain 22dB, Output Saturated Power +15dBm
955UF-30-383 40GHz – 60GHz, Small Signal Gain 30dB, Noise figure 5dB
955VF-30-10-385 50 GHz – 75 GHz, Small Signal Gain 30 dB, Noise Figure 5.0 dB
955VF-35/15/385 50 GHz – 75GHz, Small Signal Gain 35 dB, Output Power(Psat)+15 dBm
955VF-40-385 50 GHz – 75 GHz, Small Signal Gain 40 dB, Noise Figure 4.5 dB
955WF-20/10/387 75 GHz – 110 GHz, Small Signal Gain 20 dB, Noise Figure 5 dB
955WF-20/11.5/387H 75 GHz – 110 GHz, Small Signal Gain 20 dB, Noise Figure 12 dBm
955WF-30-387 75 GHz – 110 GHz, Small Signal Gain 30 dB, Noise Figure 3 dB
955WF-35/10/387 75 GHz – 110 GHz , Small Signal Gain 35 dB, Noise Figure 4.5 dB
95***-27/35/43/KF 26 GHz to 28 GHz, Small Signal Gain 42 dB, Output Power Psat +43 dBm
95***‐28/29/30/36/KFH 28GHz ‐ 29GHz, Small Signal Gain 40dB, P1dB 32dBm, Psat 36dBm
95***-29.3/40/41.5/KF/599HAC 29.3 GHz ± 0.3 GHz, Small Signal Gain 40 dB, Psat +41.5 dBm
95***-32/36.5/38/42.5/599 32GHz – 36 GHz, Small Signal Gain 45 dB, Output Power (Psat) +42.5 dBm
95***F-30/31/KFH 26GHz – 40GHz, Small Signal Gain 30dB, Output P1dB +31dBm
955B-35/48/30/27/383 35 GHz – 48 GHz, Small Signal Gain 30 dB, Output P1dB 25 dBm
955B-43/46/30/33/2.4mmFH 43GHz – 46GHz, Small Signal Gain 30dB, Output P1dB +30dBm
955E-76/81/35/387 76 GHz – 81 GHz, Small Signal Gain 30 dB, P1dB +26 dBm
955E-67.5/35/30/387H 65 GHz – 70 GHz, Small Signal Gain 35 dB, Output Power (Psat) +30 dBm
955EF-25-15-387 60GHz – 90GHz, Small Signal Gain 30 dB, Noise Figure 5 dB
955EF-30/15/387 60GHz – 90GHz, Small Signal Gain (dB) 30 dB
955UF-25/29/383H 40GHz – 60GHz, Small Signal Gain (dB) 25dB, Noise figure (dB) 5dB
955V-50/68/35/18/385 50 GHz – 68 GHz, Small Signal Gain 35 dB, WR-15
955V-60/25/31.5/385 59-61 GHz V band, Small Signal Gain (dB) 25 dB
955W-94/15/387 92 GHz – 96 GHz, Small Signal Gain (dB) 12 dB, Noise Figure 4 dB
955W-94/30/26/387 92 GHz – 96 GHz, Small Signal Gain (dB) 20 dB, Output Power(Psat) (dBm) +28 dBm
